ARGALAIR pumps for FILTER PRESS

21/09/2020

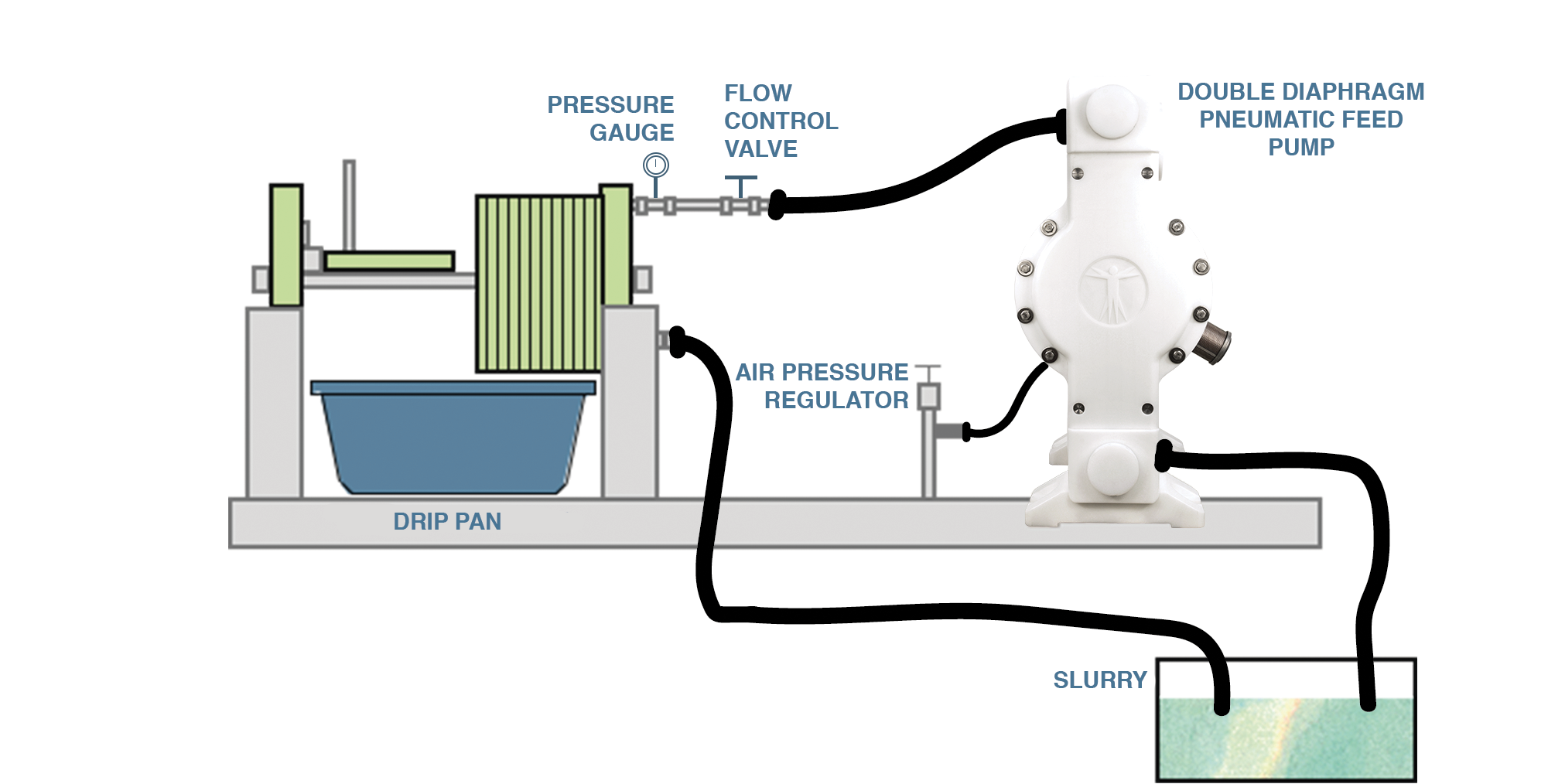

How does a filter press system work?
It mechanically separates the liquid from the solid sludges/slurries/sewages. The filter press consists of metallic plates coated covered with paper, felt medium or synthetic woven material and these plates are supported by a mechanical structure.
A closure mechanism keeps sealed the plates’ faces to counteract the force of filtration (squeezing): this reduces the liquid content in the waste slurry or the solid contents in the industrial processes.


Why ARGALAIR pneumatic pumps are the ideal solutions for this process?

  • They reach pressure up to 20 bar
  • Low maintenance cost thanks to their few components (especially if compared to mechanical seals or packing costs)
  • Simple and compact design
  • The pulsating flow produces pressure peaks that keep constantly cleaned the filter screens
  • Flow and pressure continuously change during the filtration process and the ARGALAIR AODD pumps are extremely versatile and able to adapt to the changing working parameters.
  • ARGALAIR AODD pumps are self-priming and can run dry: a perfect solution when the filter press is blocked (often) due to the viscosities of the liquid being pumped



PUMP MATERIALS

We offer various solutions ideal for the filter press process requirements, depending on the liquid pumped (abrasion, density, atmosphere):

1. Aluminium solution ensures a standard mechanical strength


MISTRAL DDM 200


2. Stainless steel solution ensures a good mechanical strength


ASTRAevo DDE 650


MISTRAL DDM 300


MISTRAL DDM 400

3. Ultra-High Molecular Weight Polyethylene ensures a superior mechanical strength and easily handles abrasive liquids


ASTRAsolid DDS 650


MISTRALsolid DDM 300

4. The internal components are in contact with the liquid are made of BUNA, EPDM or VITON


APPLICATION

The filter press is used in the following sectors:

  • Wastewater treatment plants
  • Municipal plants
  • Mines and Minerals industry
  • Food and beverage processing
  • Chemical manufacturing
  • Sewage treatment plants
  • Ceramic slurry filtration
  • Edible oil industries

ARGALAIR QUALITY

The ARGALAIR pumps sturdy design, the best-in-class air distribution system and the inner redesign grant reliability and efficiency never seen before, all reasons why we decided to extend the AODD standard warranty used on filter press applications to:

  • 36 months for AODD metallic pumps
  • 24 months for AODD plastic pumps

To know more about the ARGALAIR AODD pumps, click here and read the article.
