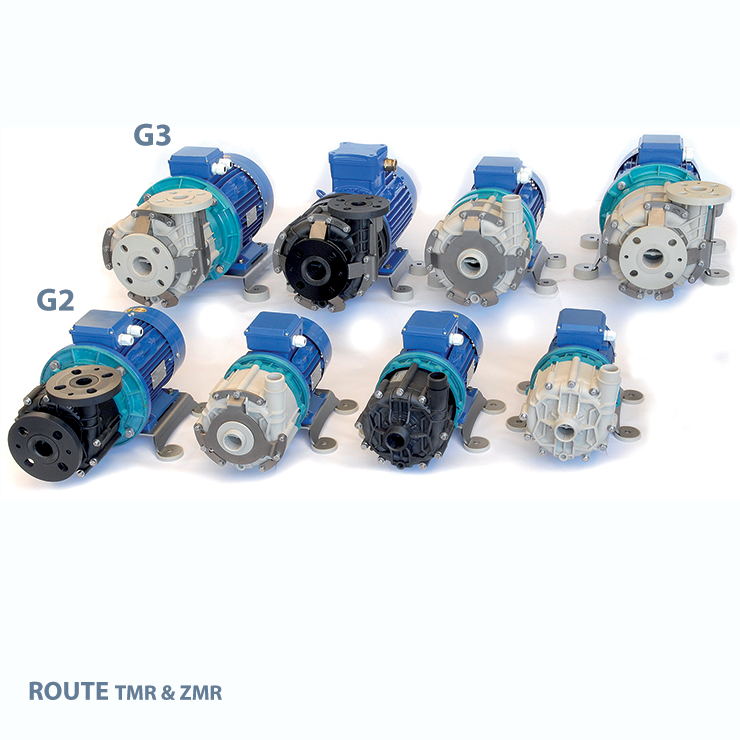

ROUTE (TMR | ZMR)

ROUTE handling pumps are made of high-quality thermoplastic polymers and have a modular design, allowing a customized configuration.

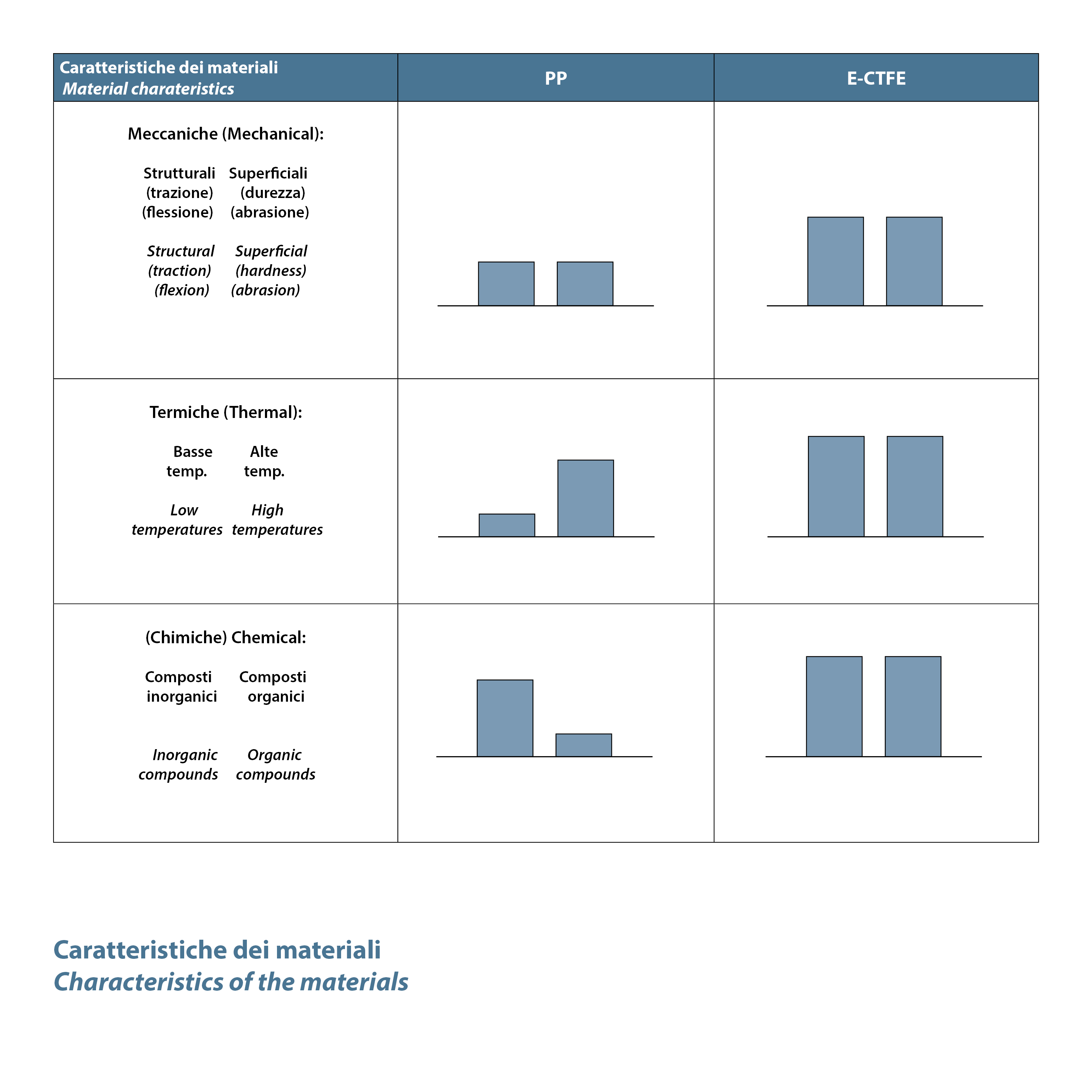

  • Available in PP+glass or E-CTFE+carbon

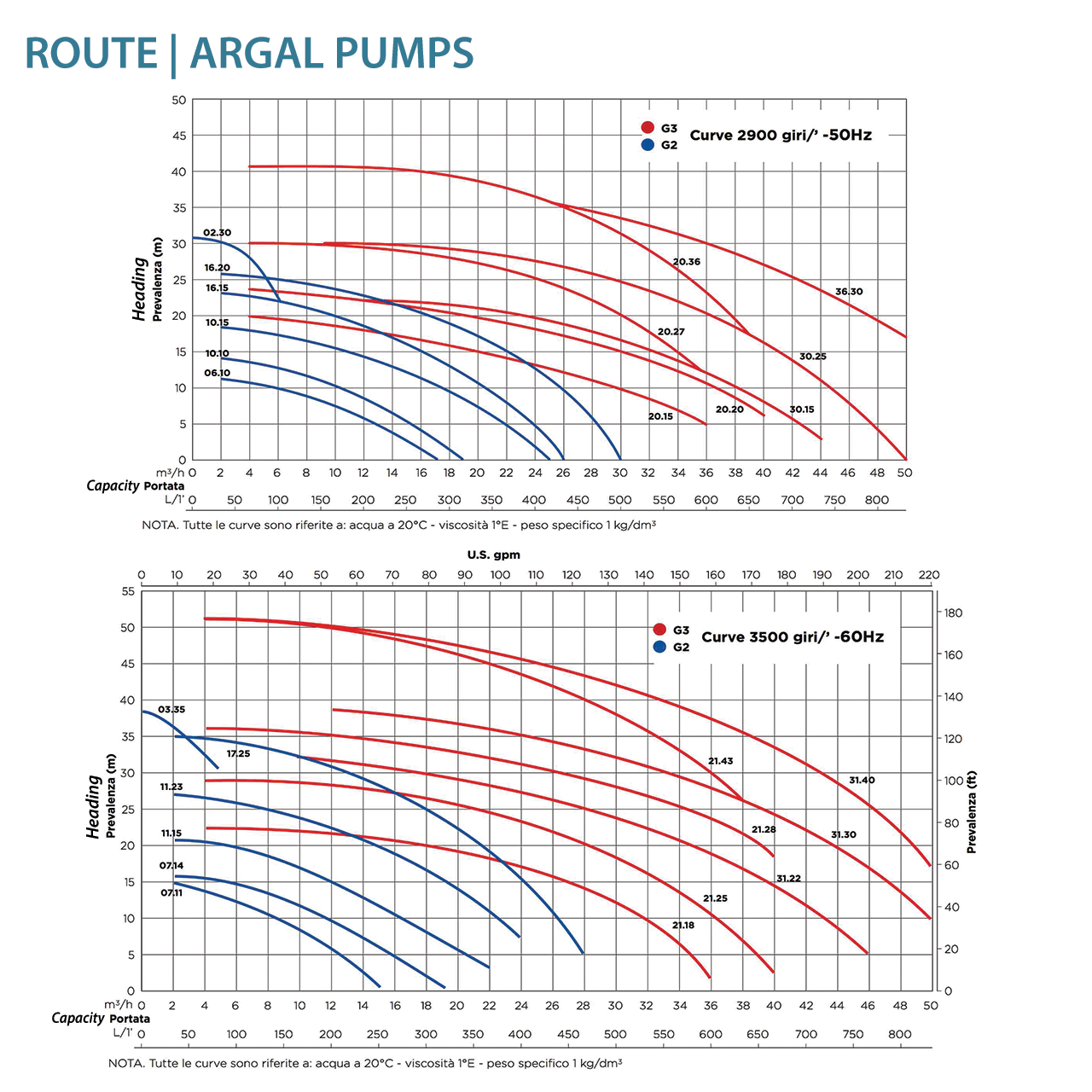

  • Capacities up to 50m3/h

  • 3 motor executions for pumping liquids with specific gravity: "N" standard, p.s. 1,05kg/dm3 | "P" powered, p.s. 1,35 kg/dm3 | "S" super-powered, p.s. 1,8 kg/dm3)

  • ATEX  Zone 2 (Serie II 3/3 GD IIB T4) conformity

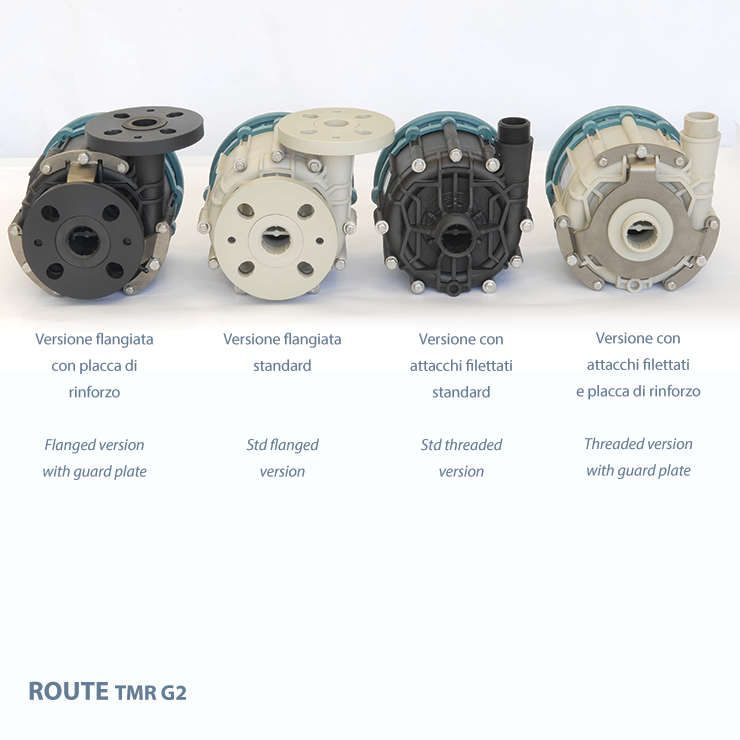

  • Multi-standard connexions compatible with ISO / JIS / ANSI

  • Stainless steel external armor to prevent the piping loads on the pump body

  • Support made of thermoplastic material to improve the resistance in aggressive atmospheres

  • Impeller available in 3 standard dimensions for a precise working point

  • For all kind of liquids (corrosive, clean, charged, heavy, or lightly abrasive)

  • "Wet-end" system for easy removal of the pump body from the motor, and therefore from the plant (= easy maintenance)

  • Dry run (patented system of bi-directional axial auto-alignment) for magnetic version (TMR)

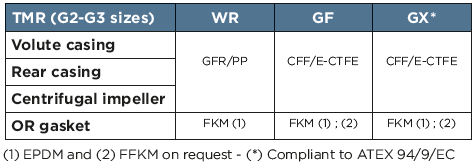

Technical data

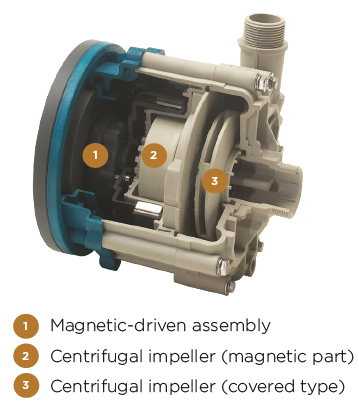

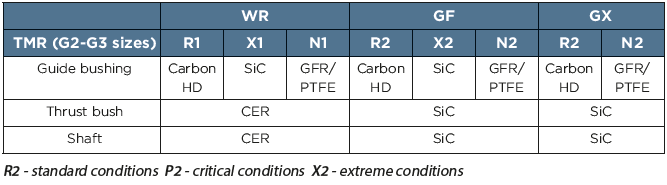

TMR: magnetically driven version

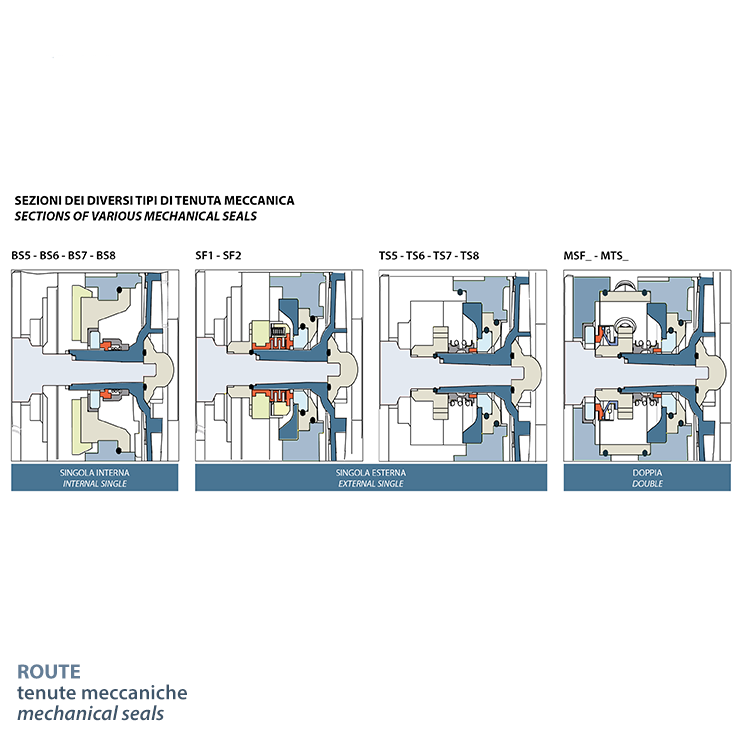

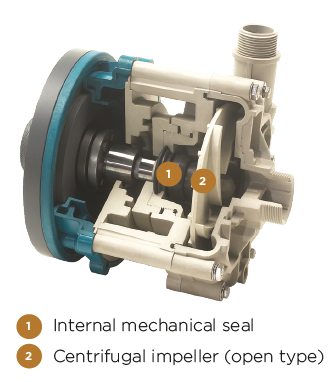

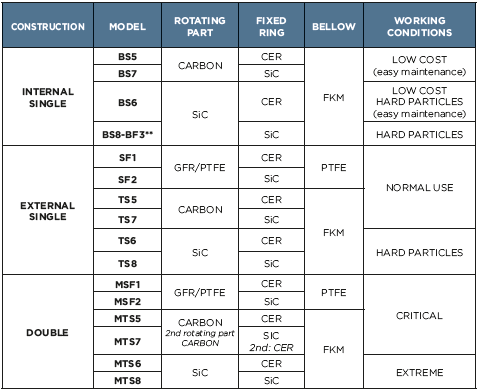

ZMR: mechanical sealed version


Applications

  • Water and wastewater treatments

  • Surface treatments

  • Pharmaceutical and chemical processes

  • Lithium battery storage

  • Semiconductors

  • Photovoltaic
