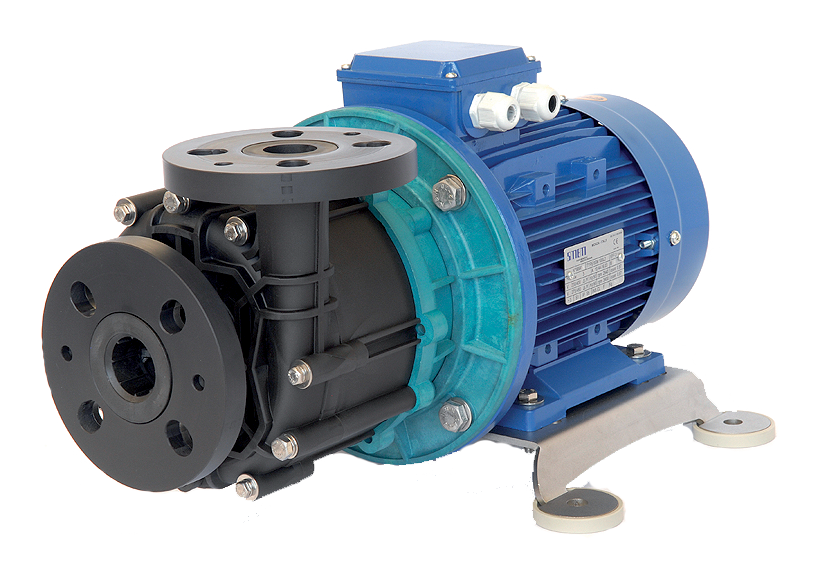

ETFE Halar® Route pump
Main pumped products
Composition
One of the best techno-polymers, ETFE is known for its chemical and mechanical resistance. Pumps made of ETFE can pump any liquid: highly corrosive, abrasive, hard liquids, and even with high temperatures. Thanks to its structure, ETFE offers superior robustness, and thus it improves reliability and durability.
Request info
-
Available in PP+glass or ETFE+carbon
-

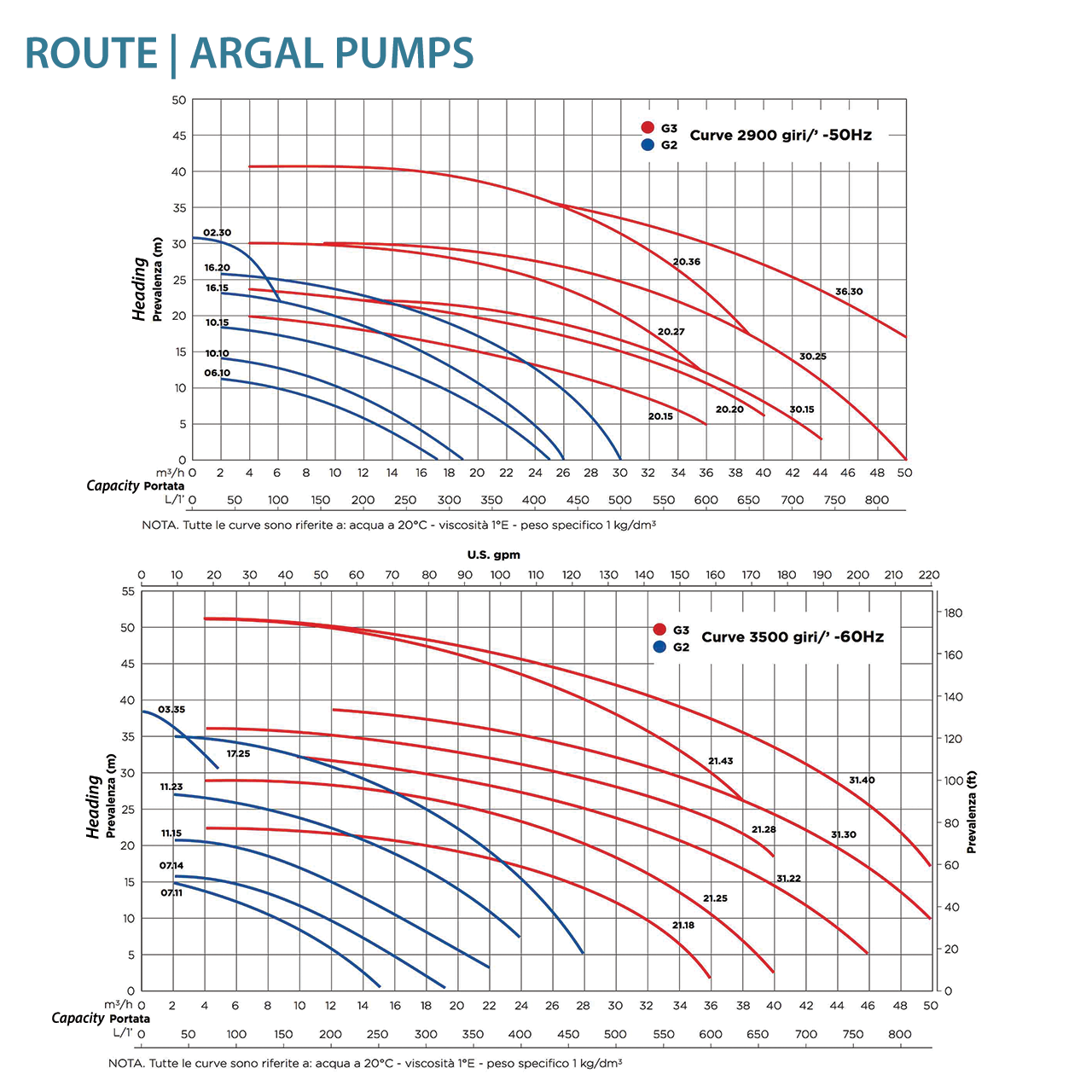

Capacities up to 50m3/h
-
3 motor executions for pumping liquids with specific gravity: "N" standard, p.s. 1,05kg/dm3 | "P" powered, p.s. 1,35 kg/dm3 | "S" super-powered, p.s. 1,8 kg/dm3)
-
Upon request: ATEX Zone 2 (II 3G Ex h IIB T4 Gb X)
-
Multi-standard connexions compatible with ISO / JIS / ANSI
-
Stainless steel external armor to prevent the piping loads on the pump body
-
Support made of thermoplastic material to improve the resistance in aggressive atmospheres
-
Impeller available in 3 standard dimensions for a precise working point
-
For all kinds of liquids (corrosive, clean, charged, heavy, or lightly abrasive)
-
"Wet-end" system for easy remove the pump body from the motor, and therefore from the plant (= easy maintenance)
-
Dry run (patented system of bi-directional axial auto-alignment) for magnetic version (TMR)
- Electroplating plants (Goldsmith plants)
- Deionising (Desalination)
- Gold / silver-plating (Goldsmith plants)
- Cleaning (Food & Beverage Industry)
- Cleaning (Pharmaceutical and cosmetics industry)
- Pre-treatments
- Cooling towers (Chemical industry)
- Transfer (Chemical industry)
- Waste water treatments (Power plant)
- Waste water treatments (Food & Beverage Industry)
- Waste water treatments (Pharmaceutical and cosmetic industry)
- Waste water treatments
- Water purification (Goldsmith plants)
