ASTRAevo (DDE)

ASTRAevo range is the ideal solution for most industrial applications. The pumps are conceived with the latest technologies to guarantee higher reliability of the pump, a longer life cycle of the diaphragms, and reducing at the lowest the maintenance necessities.



  • High hydraulic performance up to 715 l/min

  • Optimized air consumption

  • Evolved diaphragm caps

  • Non-icing air valve system

  • Operating sensitivity improved (from 1 bar)

  • Integrated muffler up to model DDE 160

  • Easy maintenance

  • Ideal for shear-sensitive liquids

  • modified PTFE diaphragms inert to chemical agents

  • Diaphragms available in thermoplastic materials (TPE, TPV) and reinforced elastomers (FKM, EPDM, NBR)

  • Dry-running

  • Self-priming

  • Upon request:  FDA conformity with ASTRAevo FOOD version

  • Upon request:  ATEX Zone 2 (II 3G Ex h IIB T4 Gb X | II 3D Ex h IIIB T135°C Db X) and Zone 1 (II 2G Ex h IIB T4 Gb X | II 3D Ex h IIIB T135°C Db X) with conductive body and parts

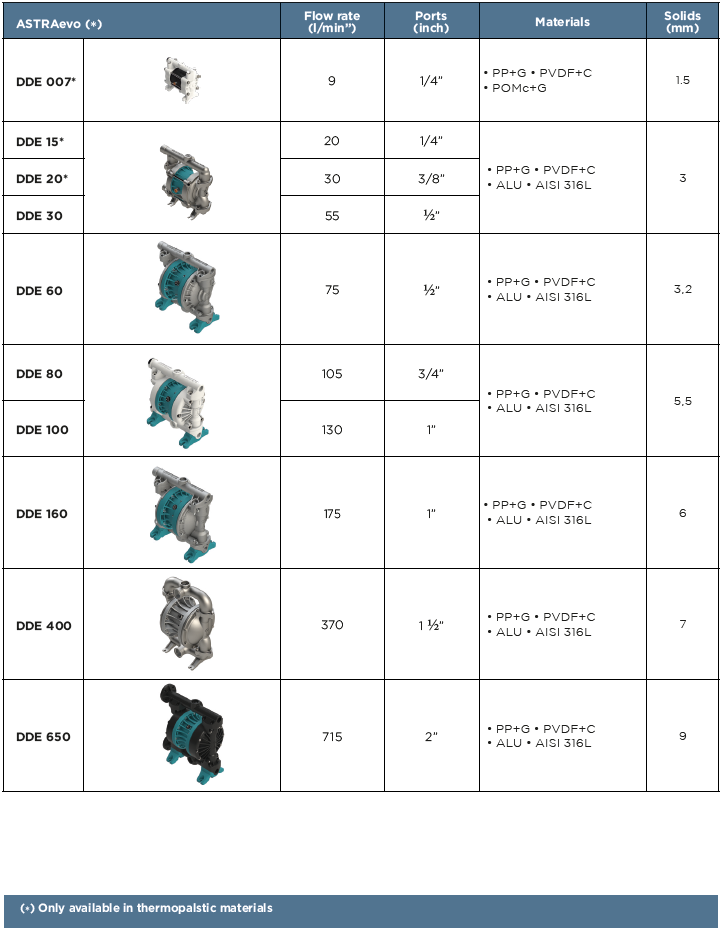

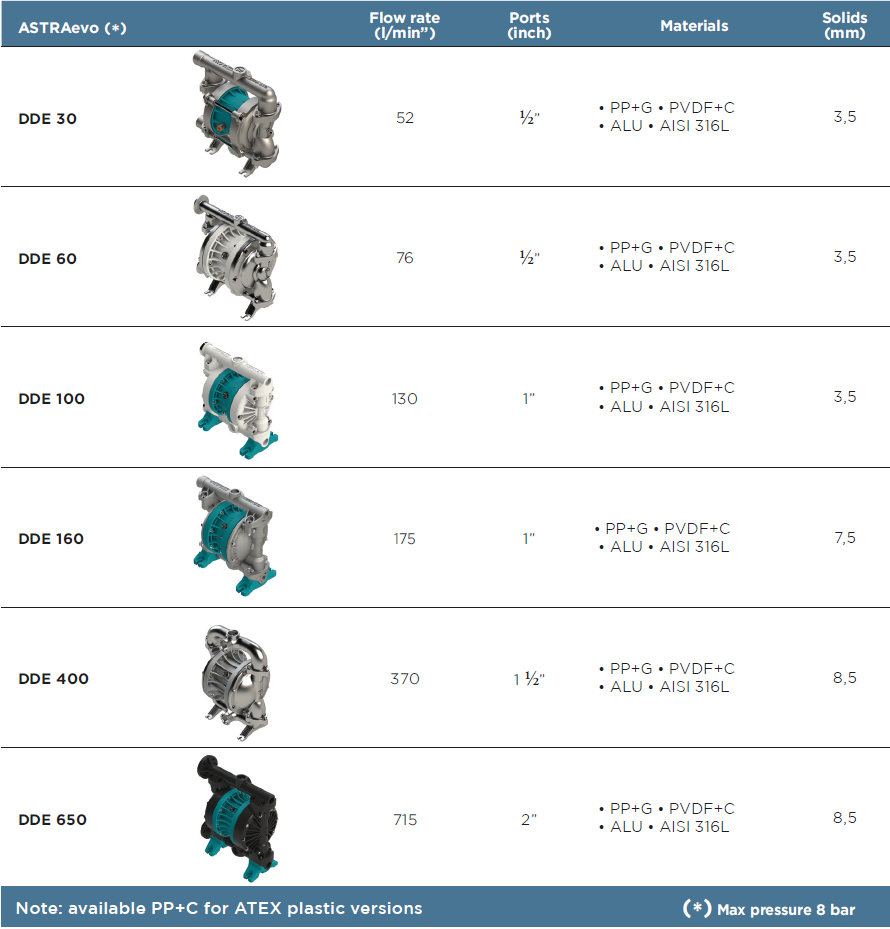

Overview

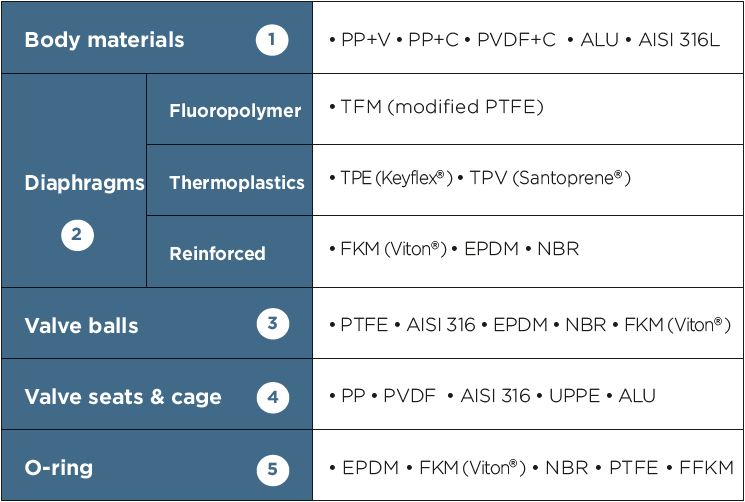

Internal composition


Standard connections





Upon request: all connection configurations are available for plastic and aluminum versions.

  • AISI 316l versions can be set with the connections up to model DDE 160. Models DDE 400 and DDE 650 have the flanged connections "F-B"

  • It is not possible to set the "F-B" connections and  "V" connection is not recommended for model DDE 020

For further connection configurations, contact us


Applications

  • Chemical production

  • Surface treatment

  • Water and wastewater treatment

  • Aerospace

  • Pulp and paper

  • Automotive

  • Flexographic

  • Pharmaceutical

  • ...


Accessories

  • ARDROP pneumatic batch dosing system

  • ARAIR air regulation system

  • ARCONTROL  pump monitoring system

  • ARDRUM drum transfer system

  • ARGEMINI 2-liquid pumping system

  • ARCOMBI mobile emergency system

  • ARFLEX pump-plant antivibration connections

  • ARGARD diaphragm leakage detecting system
