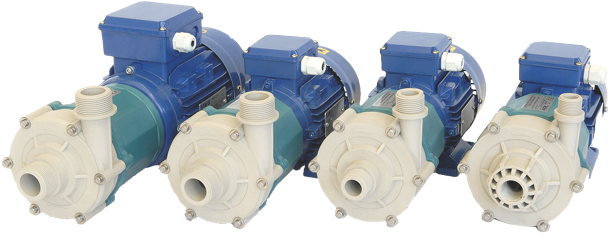

PRIMA (TMP)

Magnetic drive pumps constructed of reinforced thermoplastic or fluorinated polymers and internal components made of ceramic oxides and carbon graphite excluding any metal part in contact with the pumped liquid. The combinations of materials, including the one that tolerates a temporary dry operation, ATEX construction and various electric moto power rates available make these pumps full-fledged small chemical pumps.



TMP

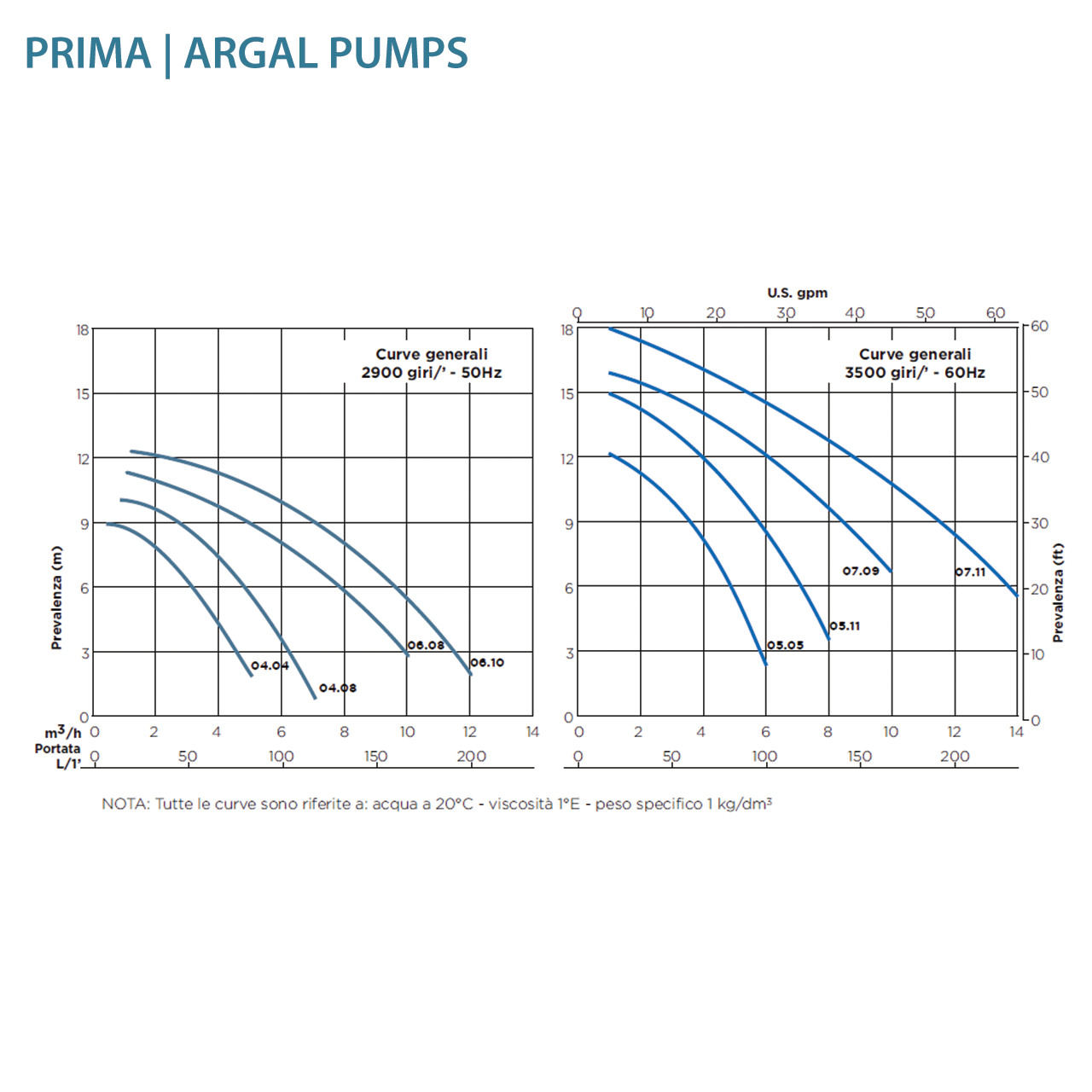

Capacity: up to 12 m3/h
Construction: close coupled
Motor power: W0,18 ÷ 1,1
Wetted parts: PP and E-CTFE


Atex standards

All metallic and thermoplastic standard executions are adequate to operate in explosive atmospheres classified Zone 2 (Serie II 3/3 IIB T4). For operations in areas classified Zone 1 (Serie II 2/2 GD IIB T4), we offer pumps made of conductive parts for all thermoplastic and metallic versions.

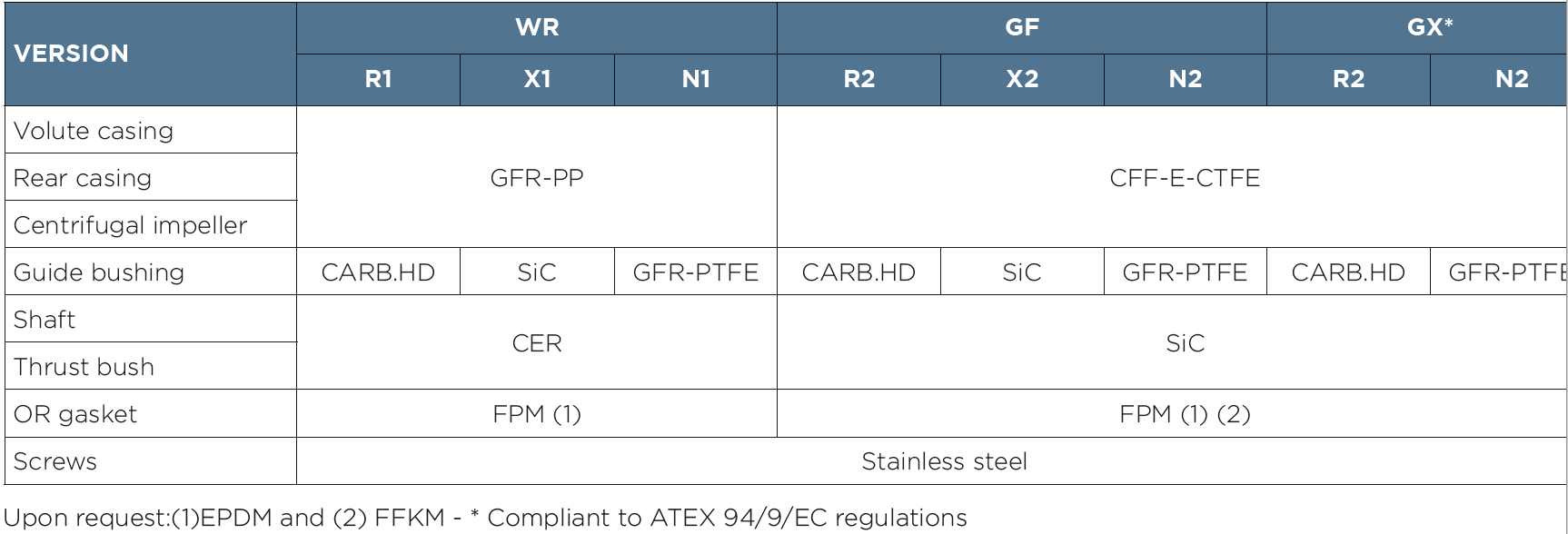

Materials

3 combinations of materials are available (N - R - X) for applications with liquids with suspended solids, clean liquids, slightly abrasive or with high alkalis or salt (hypochlorite sodium) or acids (chromic, nitric, sulphuric, etc..)
