Polypropylene KGK pump

Main pumped products

Composition

Chemically and mechanically resistant, this thermoplastic polymer is used for KGK pump to transfer acids, alkalis, detergents or even solvents. Thanks to its properties and dimensional stability, polypropylene is wear-resistant, corrosion-resistant as well as moderately abrasion-resistant.


Version PP + Fiberglass

This special coating version confers a greater strength and robustness which limits probable linear extensions due to variable temperatures of the liquid and of the environment.

Request info

  • Process sump pumps for aggressive liquids

  • 3 versions according to the performance and pump size: KGK G1 - G2 (radial volute casing) o KGK G3 (axial volute casing)

  • Available in materials PP or PVDF with column reinforced with fiberglass

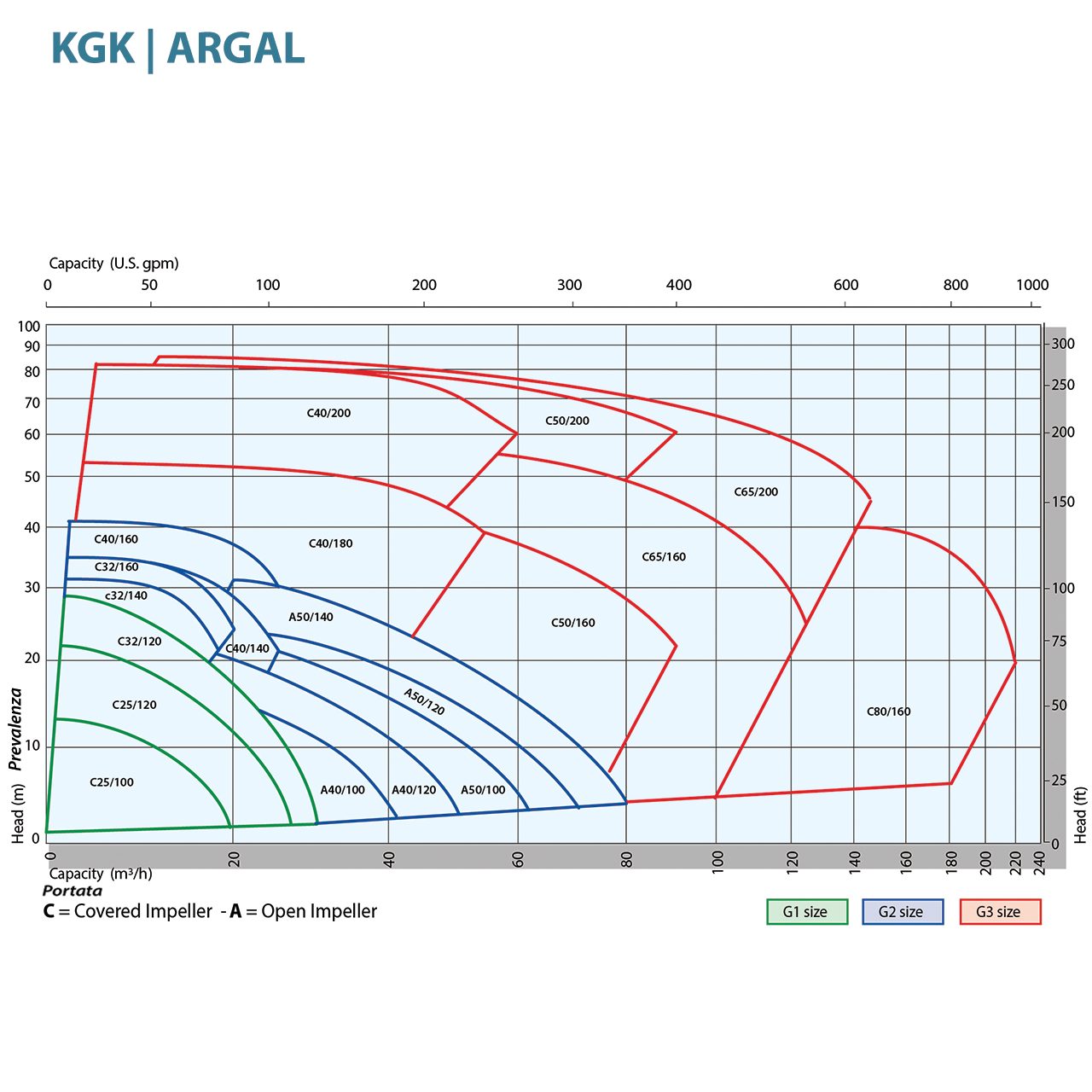

  • Up to 275m3/h

  • Column from 0,5 to 5m

  • 3 motor execution available according to the specific gravity of the liquid pumped: "N" standard -  1,1 s. gravity ; "P" powered - 1,35 s. gravity ; "S" super-powered - 1,8 s. gravity

  • Different flushings available

  • ISO 9906:2012 Grade 2 conformity

  • The shaft's guide bushings are made of ceramics or silicium carbide

  • Different vapor sealing systems or rotating mechanical seals available for the protection against corrosion of the superior metallic parts

  • No need for a sealing system against leaking

  • The construction of the bushing and coupling is compact, ensuring an easier installation and improved use
