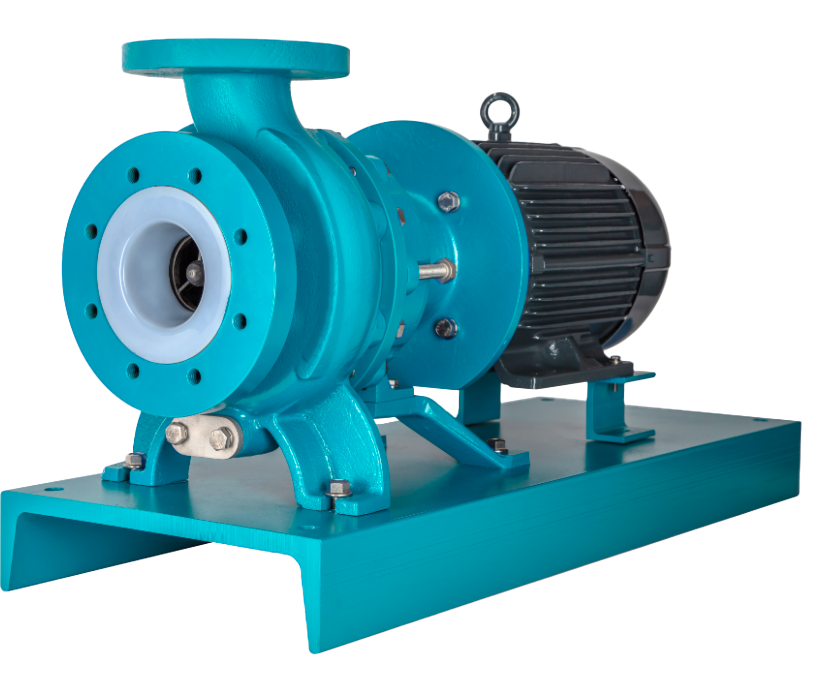

ARL 4x3x6L
Main pumped products
Composition
MATERIALI
Request info

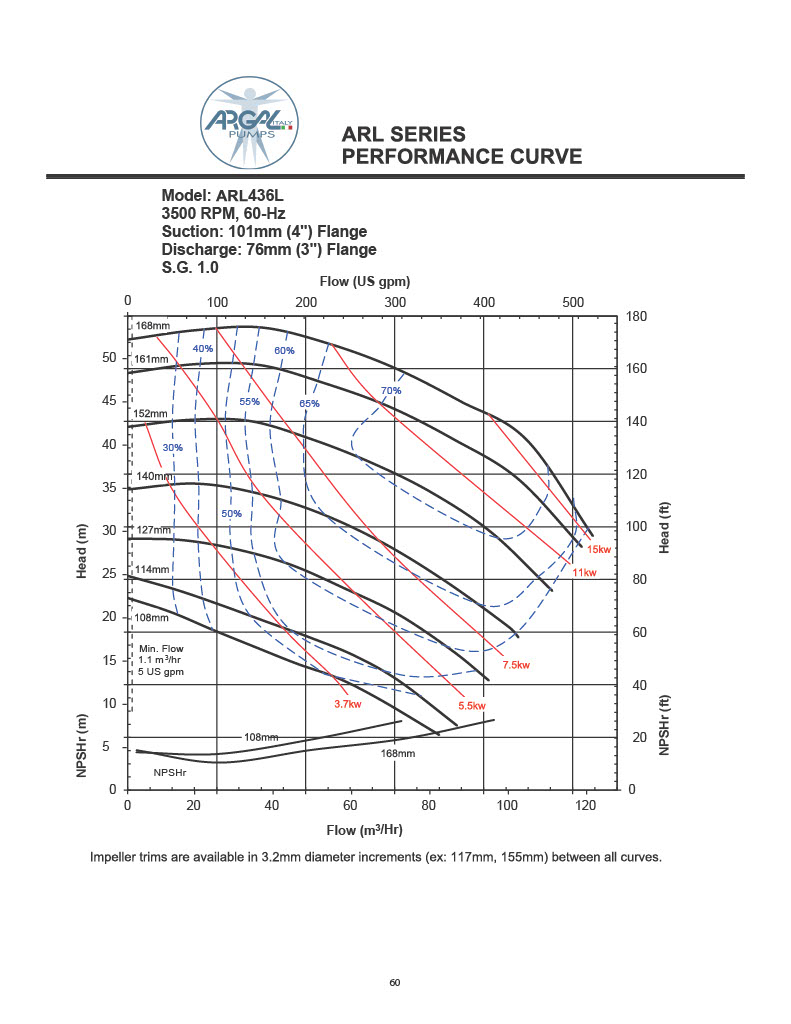

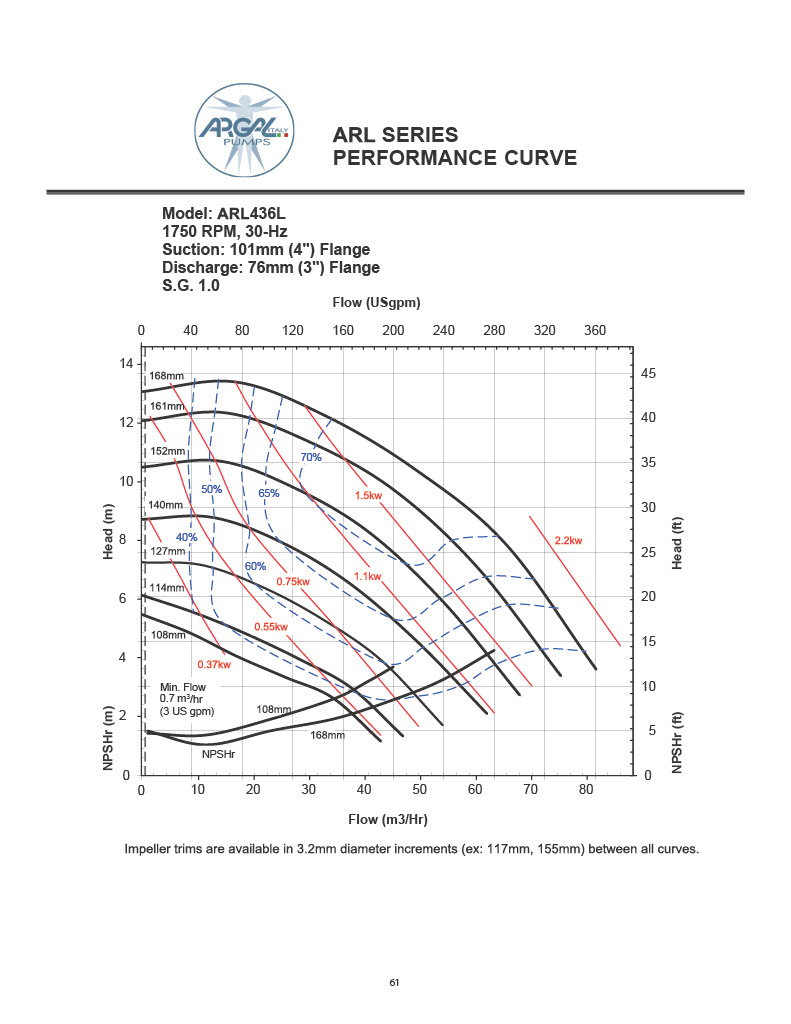

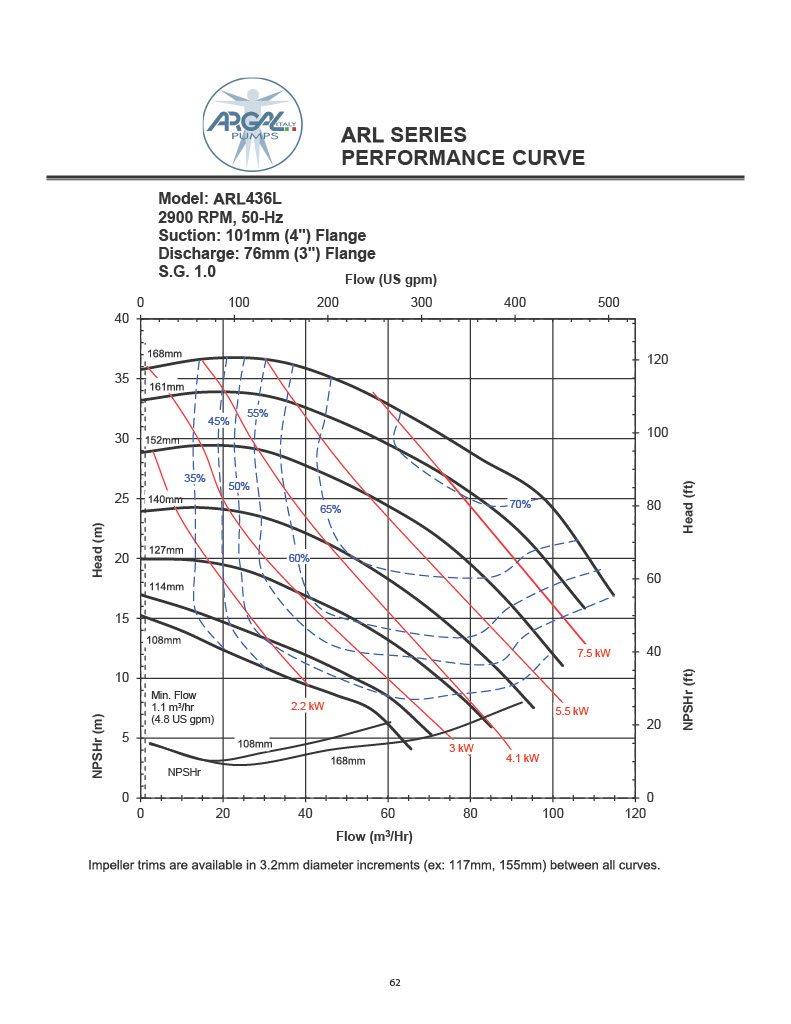

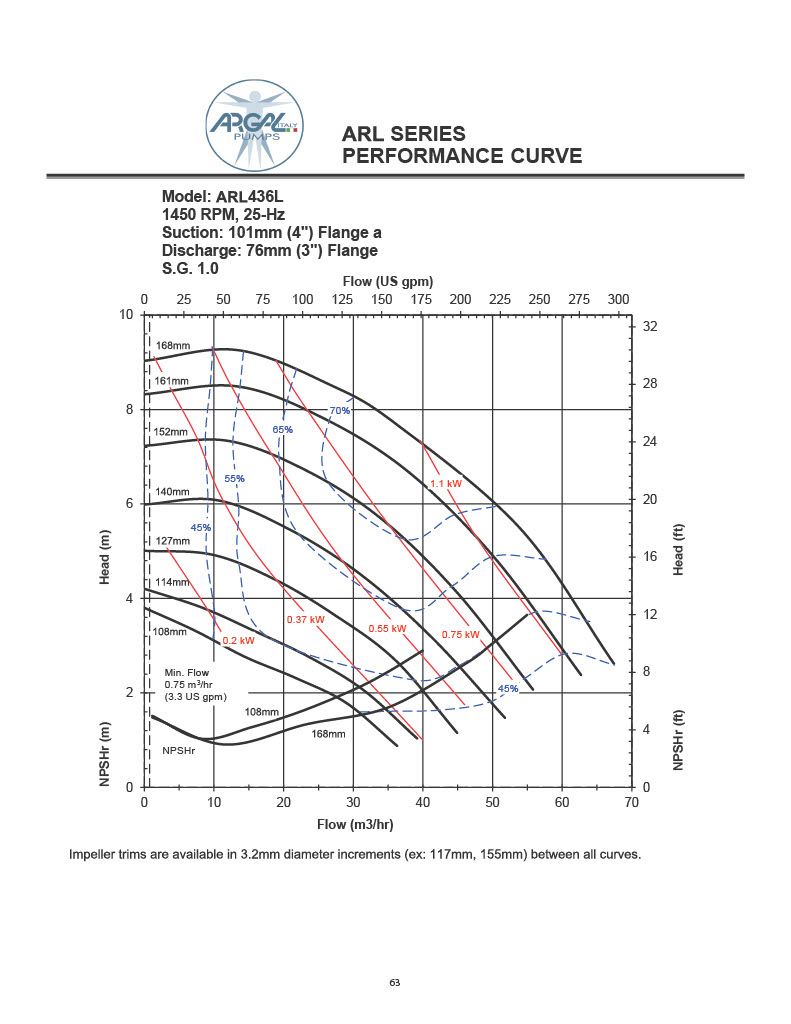

| ARL 4x3x6L | @2900 RPM | @3500 RPM |
| Flow Range* | 1.1 to 100 m3/h (5 to 440 gpm) |
1.1 to 100 m3/h (5 to 440 gpm) |
| Maximum Head | 35.3 m (115.8 ft) | 167 ft (51m) |
| Power Range** | 1.1 to 22 kW (3 to 30 hp) |
2.2 to 22 kW (3 to 30 hp) |
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.
| Suction Port Size | 10.1cm (4 in) |
| Discharge Port Size | 7.6cm (3 in) |
| Connection Types | ANSI 150# Flange, ANSI 300# Flange, ISO PN40 Flange |
| Maximum Specific Gravity | over 1.8 |
| Maximum Working Pressure | 21 bar (300 psi) |
| Maximum Temperature | 121º C (250º F) |
| Type | Heavy Duty Sealless Mag Drive |
| Configuration | Horizontal ANSI dimensional |
| Construction Materials | ETFE-lined ductile iron |
| O-Ring Materials | FEP/FKM, FKM, EPDM, Simriz®, or Kalrez® |
| Bushing Materials | Carbon, SiC, or DLC Dri-Coat SiC |
| Shaft Materials | SiC or DLC Dri-Coat SiC |
Kalrez® is a registered trademark of DuPont Performance Elastomers
Simriz® Perfluoroelastomer is a registered trademark of the Simrit® division of Freudenberg-NOK
1. Casing
2. Drain Cap
2A. Drain Cap Gasket
3. Front Shaft Support
3A. Front Thrust Ring
4. Impeller Assembly
4A. Impeller Thrust Ring
4B. Impeller Thrust Ring O-Ring
5. Impeller Drive Hub
5A. Bushing
5B. Bushing Retainer
6. Shaft
7. Housing O-Ring
8. Barrier Assembly - Includes Item 4C
8A. Rear Sealing Ring
8B. Rear Sealing Ring Retainer
8C. Rear Sealing Ring Retainer Lock
9. Vapor Protection O-Ring
10. Clamp Ring
11. Outer Drive Assembly
11A. Outer Drive Magnet Hub
11B. Shaft Adapter
12. Motor Adapter
13. Motor End Vapor Protection O-Ring
14. Motor Adapter Flange
15. Motor Adapter Flange Vapor Protection O-Ring
16. Drain Cap Hex Head Cap Screw
17. Drain Cap Lock Washer
18. Casing Hex Head Cap Screw
19. Casing Lock Washer
20. Shaft Bolt
21. Shaft Lock Washer
22. Shaft Washer
23. Retaining Ring
24. Shaft Adapter Hex Nut
25. Shaft Adapter Hex Head Cap Screw
26. Shaft Adapter Lock Washer
27. Motor Adapter Hex Head Cap Screw
28. Motor Adapter Lock Washer
29. Jack Screws Hex Head Cap Screw
30. Motor Adapter Hex Head Cap Screw
31. Motor Adapter Lock Washer
32. Motor to Motor Adapter Flange Screw
33. Motor to Motor Adapter Flange Lock Washers
