Main pumped products

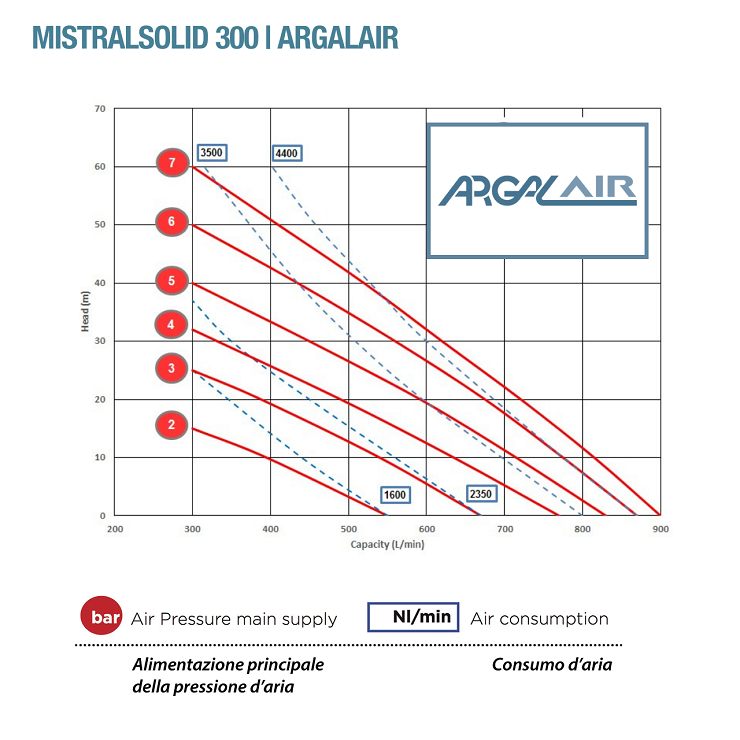

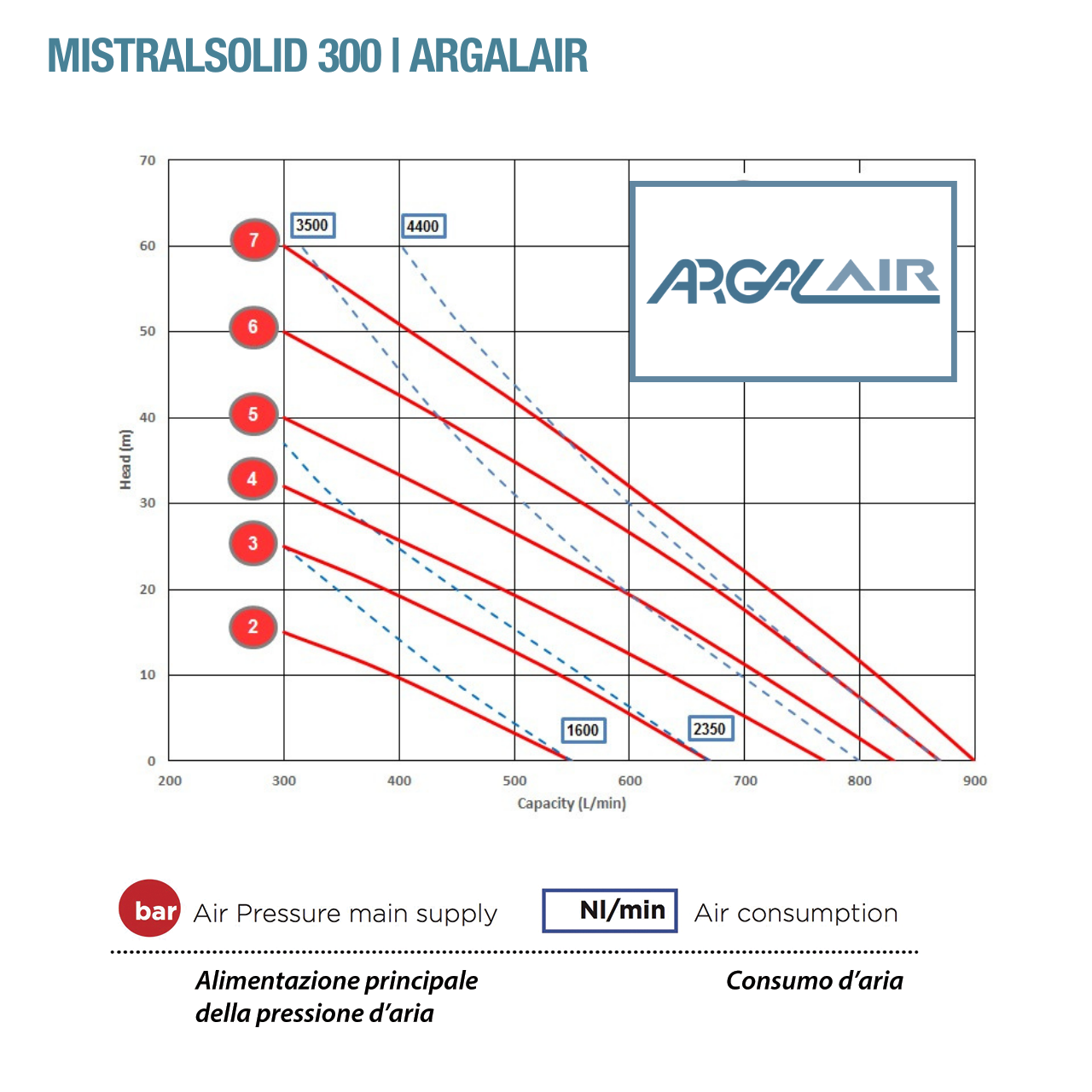

Capacity: up to 1100 l/min
Heading: up to 80 m
Air consumption: up to 4500 Nl/min
Wetted parts: AISI 316 L

Request info

  • High hydraulic performance

  • Low air consumption

  • Non-icing air valve system

  • Very-fast air distributor system made of only 5 components

  • Stall-free design

  • Anti-corrosive materials (AISI 316L, Bronze, Duplex) or anti-abrasive material (PE1000)

  • Thermoplastic diaphragms (TPE, TPV) and reinforced elastomers (EPDM, NBR, PTFE)

  • Ideal for shear-sensitive liquids (thanks to the smooth movement of the diaphragms)

  • For continuous, heavy, and dangerous

  • Upon request:  ATEX Zone 1 (II 2G Ex h IIB T4 Gb X | II 3D Ex h IIIB T135°C Db X)
