ASTRAevo FOOD

ASTRAevo FOOD series is made for specific and delicate applications requiring FDA compliance. Based on ASTRAevo technology, ASTRAevo FOOD is a recent project too, conceived with the latest technologies to guarantee higher reliability of the pump, a longer life cycle of the diaphragms, reducing at the lowest the maintenance necessities, and a great quality/price ratio.

  • High hydraulic performance up to 715 l/min

  • Optimized air consumption

  • Evolved diaphragm caps

  • Non-icing air valve system

  • Operating sensitivity improved (from 1 bar)

  • Integrated muffler up to model DDE 160

  • Easy maintenance

  • Ideal for shear-sensitive liquids

  • modified PTFE diaphragms inert to chemical agents

  • Diaphragms available in thermoplastic materials (TPE - TPV) and reinforced elastomers (FKM, EPDM and NBR)

  • Dry-running

  • Self-priming

  • FDA conformity  with the parts in contact with the liquid entirely made of electropolished AISI 316l, 125Ra finishing, and PTFE

  • Upon request:  ATEX Zone 2 (II 3G Ex h IIB T4 Gb X | II 3D Ex h IIIB T135°C Db X) and Zone 1 (II 2G Ex h IIB T4 Gb X | II 3D Ex h IIIB T135°C Db X) with conductive body and parts

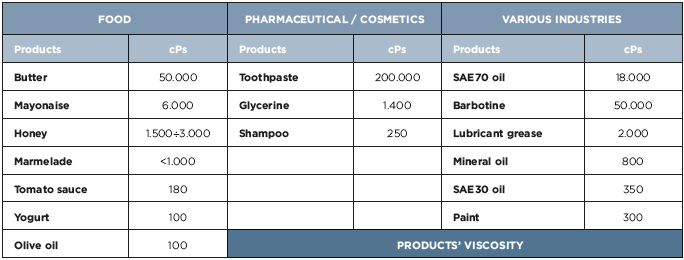

Viscosity overview




Applications

  • Food & Beverages industry

  • Cosmetic industry

  • Pharmaceutical industry

  • Distilleries

  • Laboratories

  • ...


​Accessories

  • ARDROP Dosing pumping system

  • ARAIR Air regulation kit

  • ARCONTROL  Pump monitoring kit

  • ARDRUM Drum transfer kit

  • ARGEMINI 2-liquid pumping kit

  • ARCOMBI Mobile emergency kit

  • ARFLEX Pump/system anti-vibration kit

  • ARGARD Diaphragm leakage detector
